Automatic Voltage Regulator

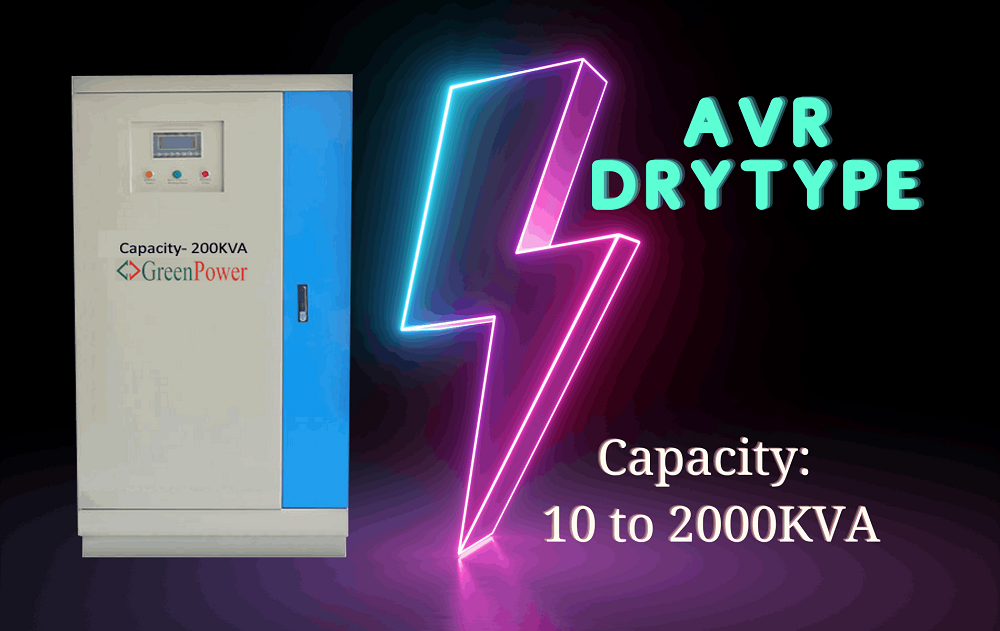

Automatic Voltage Regulator (Dry Type):
BAIZID Power Voltage Regulator is designed with servo control system & necessary protecting circuits. The regulator is performed automatically causing a step less continuous operation with high regulation and fast response time.AVR is the suitable protective device for all equipment’s will only provides with stable and reliable power but also offers substantial benefits in performance, reliability and maintenance cost of the load.
Application for Using Area:
- Elevators & Escalators, Tele Communication, Equipment’s
- Cement Factory, Readymade Garments
- Textile Machineries, Spinning Machineries
- Weaving Machineries, Knitting Machineries, Dyeing & Finishing Machineries
- Embroidery Machineries & Label Machineries
- Pharmaceutical Equipment’s, Hospitals & Medical Equipment’s, Laboratory Equipment’s, Scientific Equipment’s
- Computer Systems, Color Laboratory Equipment’s
- Defence Equipment’s & Central Air Conditioning Plant
- Injection Molding Machines, Ceramic industries’, Other industries’
Features & Characteristics:
Fully Aulomatic,Servo Motor Controlled, Wide Range Goverage, 0verload/ Short Circuit Protection ,High And Low Voltage Protection, Auto/Manual Regulating 0ption (60KVA and above), individual/Combined Phase Controlled, Phase Sequence Protection (60KVA and above), Built-in (Adjustable) Delay Timer (0ptional), Auto Trip And Reset System, Voltage indication Meter, Current indication Meter, Fast Response Time, internal Manual By-Pass System (0ptional), Phase Missing Protection, Rust Proof Plastic Paint Steel Cabinet.
Gallery
Testimonials
Technical Parameters:
DESCRIPTION | SINGLE PHASE | THREE PHASE |
Model | GPS | GPS – 30 |
Capacity 1 KVA | 1 KVA – 50KVA | 3KVA – 2OOOKVA |
input Voltage Range | 140V – 270V,120V – 280V, 100V-280V | 300v – 460v/ 250v-460v/ 21 0v-460v |
0utput Voltage | 220V I 230V I 240V AC | 380V/400V/ 415V I 440V I 460V |
Frequency | 50Hz | 50Hz |
Control System | Servo Control | Combined or individual Phase Control. |
Protection | Over voltage, Under voltage, 0ver load, Short circuit, Surge, Spike, Transient Protection. | Over voltage, Under voltage, Over load, Short circuit, Surge, Spike, Transient, Protection, Phase Sequence Protection and Phase Missing Protection. |
Monitoring System | LCD/LED Display / Digital Display | LCD/LED Display / Digital Display |
Correction Accuracy | 1% I 3/” | 1% I 3/” |
Correction Speed | 30V/Sec or 5OV/Sec | 3OV/Sec |
Cooling System | Natural Air / Forced Air | Natural Air / Forced Air |
Waveform Distortion | Negligible | Negligible |
Transient Suppression | Upto 800V Peak | Upto 800V Peak |
Load Power Factor Effect | Nil | Nil |
Environment Condition | 4”C-45”C | 4”C-45”C |
Duty Cycle | 85% Continuous | 85% Continuous |
Humidity | Maximum 98% | Maximum 98% |
Over load Capacity | 100% for 15 Sec | 100% for 15 Sec |
AVR with other Capacity & Specifications are also available.
